Features
.png)
Strong Stability
Functions
.png)
UHF RFID(Impinj R2000Chip)
Technical Parameters
| Sensor | Impinj R2000 RF |
|---|---|
| Working Voltage | DC 5.0V |
| Working Current | ≤1.5A |
| Standby Current | ≤50mA |
| Sleep Current | ≤1mA |
| Working Temperature | -25 -- +65℃ |
| Working Humidity | ≤95%(+25℃) |
| Storage Temperature | -40 -- +80℃ |
| Tag Protocol | EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C |
| Working Frequency | 840～960 MHz |
| Supporting Working areas | China 1, China 2，US, Canada and other regions following U.S. FCC，Europe and other regions following ETSI EN 302 208 with & without LBT regulations，Japan，Korea，Malaysia Taiwan |
| Output Power | -30℃～+70℃ |
| Output Power Flatness | Software adjustable, step interval 1.0dB, maximum 30dBm |
| Receiving Sensitivity | ±0.2 dBm |
| RF Port Standing Wave | ≤1.5 |
|---|---|
| Maximum Reading Distance | ≥10m (With 8dBi antenna/Relate to tags type, transmitted power and application environment) |
| Multi-tag Reading | ≥400 tags/s |

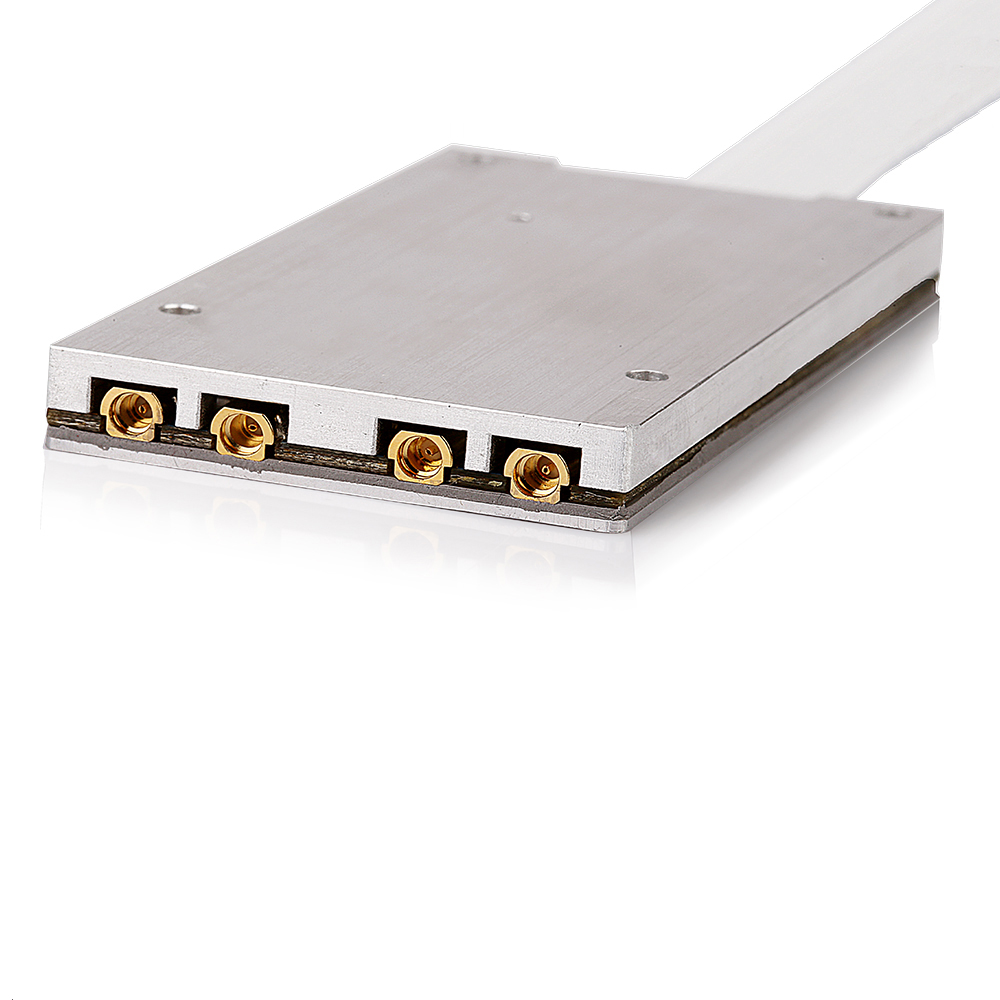

| Antenna Interface Amount | Four (MMCX) |
| Interface Communication Rate | 115200 bps |
| Working Temprature Detection | Support |
| Intensive Read/Write Mode DRM | Support |
| Antenna Connection Protection | Support |
| RSSI | Support |
| LED | Red light (power indicator ) |
| Product Cooling Way | Aluminum metal case as cooling fin for the module |
| SIZE | 76.4*40.3*7.0MM |
