Features
.png)
Strong Stability
.png)
Outstanding Consistency
Functions
.png)
UHF RFID(Impinj R2000 Chip)
.png)
Barcode Scanning(Optional)
.png)
NFC(Optional)
.png)
GPS
Technical Parameters
| Reader chip | Impij R2000 |
|---|---|
| Tag protocol | EPCglobal UHF Class 1 Gen 2/ISO 18000-6C |
| Working Frequency | 840～960MHz |
| Supporting Working Area | China, Europe, the United States, South Korea, Japan, Taiwan…… |
| Operating Voltage | 12V |
| Maximum operating current | 1A |
| Standby current | ≤80mA |
| RF port maximum output power | 1W(30dBm) |
| Working Temperature | -25℃～+65℃ |
| Working Humidity | ≤95%（+25℃） |
| Storage Temperature | -40℃～+80℃ |
| Receiving | -82dBm |
| Antenna interface impedance | 50Ω |
| Serial communication parameters | Baud rate adjustable（default 115200bps）, parity bit：0 ，data bit：8 ，stop bit：1 |
| Power output settings | 5～30dBm adjustable /Adjustable minimum interval of 1dBm（default 30dBm） |
| DRM mode | support |
| RSSI | support |
| High temperature automatic protection function | support |
|---|---|
| Power supply enable | support |
| GPIO interface | Input IO port: 2 channels Output IO port: 4 channels |
| Buzzer | support |
| LED lights | Power indicator: Red Status indicator: Green |

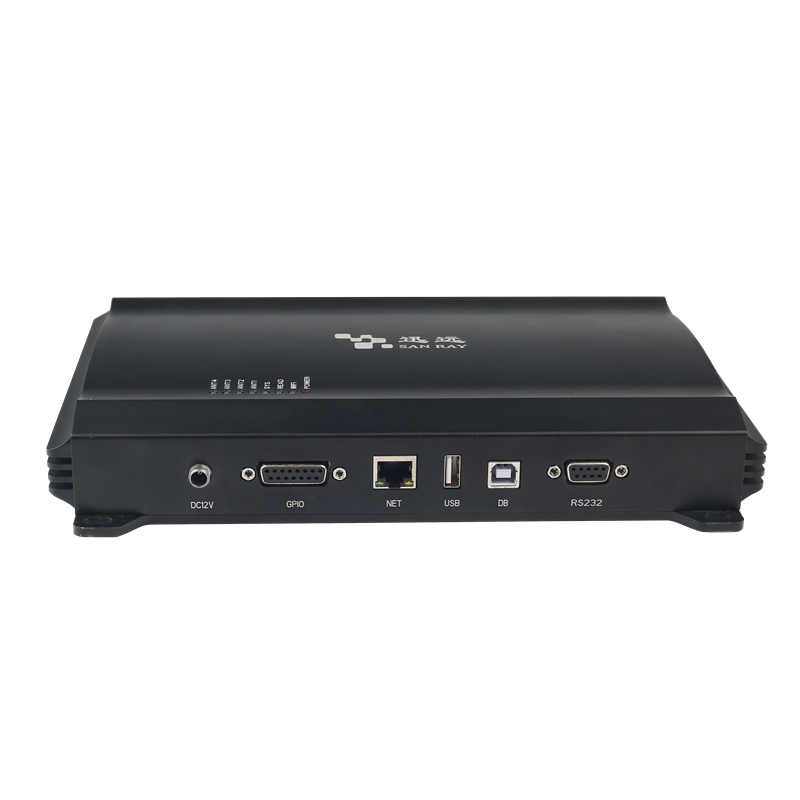

| Communication Interface | USB、RS232、RS485、Ethernet |
| Antenna interface | Four TNC |
| Dimension | 26.5*25.0*4.5CM(including bracket) |
| Accessories | 12V/3A Power Adapter：1 Serial line: 1 root |
